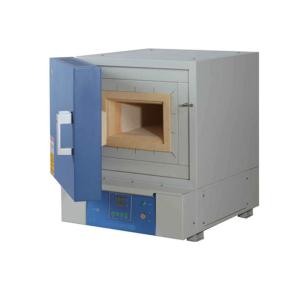

SX-N Series Muffle Furnace
Features:
● The unique design of the furnace door makes it safe and easy to open the door, ensuring that the high-temperature hot air in the furnace does not leak out.
● Microcomputer PID controller, easy to operate, accurate, reliable and safe temperature control.
● Lightweight, corrosion-resistant furnace to ensure durability.
● Excellent door seal minimizes heat loss and increases temperature uniformity in the furnace.
security function:
● Just open the furnace door during operation. The furnace door safety switch will automatically disconnect the heating power to ensure the safety of the operator.
● Equipped with various safety protection measures such as over-current, over-voltage and over-heat to ensure the safe use of electric furnaces.
● The ceramic fiber board is selected as the thermal insulation material, which has the characteristics of good thermal insulation effect and low surface temperature of the casing.
Furnace selection (users can choose according to their needs):
● The refractory brick furnace (N series) uses traditional refractory materials, which has a wide range of applications, long life, and high cost performance.
| SX2-2.5-10N | 1000 | 2L | 120×200×80 | 400×580×610 | 220V/50HZ | 2.5KW |
| SX2-4-10N | 1000 | 7L | 200×300×120 | 520×650×660 | 220V/50HZ | 4KW |
| SX2-8-10N | 1000 | 16L | 250×400×160 | 570×810×740 | 380V/50HZ | 8KW |
| SX2-12-10N | 1000 | 30L | 300×500×200 | 700×930×845 | 380V/50HZ | 12KW |
| SX2-2.5-12N | 1200 | 2L | 120×200×80 | 400×580×610 | 220V/50HZ | 2.5KW |
| SX2-5-12N | 1200 | 7L | 200×300×120 | 520×650×660 | 380V/50HZ | 5KW |
| SX2-10-12N | 1200 | 16L | 250×400×160 | 570×810×740 | 380V/50HZ | 10KW |
